Before you flash: Flashing firmware will erase all data on your device. Back up contacts, photos, and apps before proceeding. FlashGuideHub is not responsible for any damage caused by following this guide.

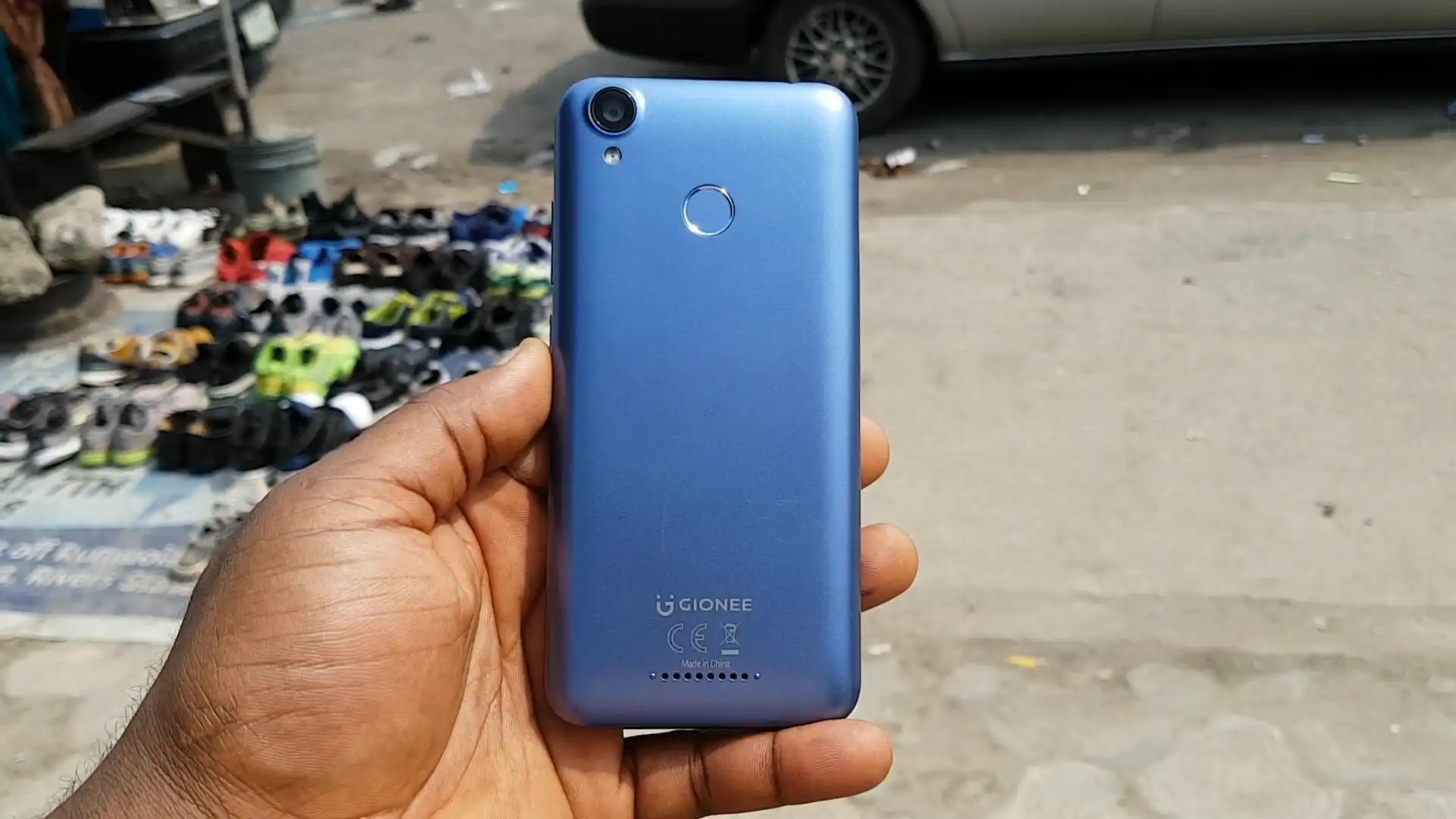

About the Gionee M6 Mini
The Gionee M6 Mini was released in October 2016, built on the MediaTek MT6750 platform. Featuring a 5.3-inch In-cell HD IPS display, a 13 MP rear camera with phase detection autofocus, and a generous 4000 mAh battery, the handset provides dependable everyday multitasking.
Flashing official factory firmware using SmartPhone Flash Tool (SP Flash Tool) unbricks dead handsets, clears persistent bootloops, and restores factory Amigo OS performance. Follow the verified driver preparation and procedural walkthrough below to service your device safely.
Which Flash Mode Should You Use?
MediaTek Preloader / BROM Flashing Mode
Official firmware deployment mode. Writes partition images directly to eMMC flash memory via Preloader handshake without requiring fastboot unlocking.
Stock Android Recovery Mode
Factory recovery interface for performing data wipes, cache clearance, and ADB sideload packages.
What You Need Before Flashing
Maintain at least 40% battery charge to ensure stable voltage during partition programming.
Connect via an authentic microUSB cable directly to a rear USB 2.0 port on the computer motherboard.
Install MediaTek USB VCOM and Preloader drivers to ensure proper SP Flash Tool communication.
Always choose "Download Only" in SP Flash Tool to protect factory NVRAM baseband calibrations.
How to Flash the Gionee M6 Mini β Quick Overview
5-step quick reference for the Gionee M6 Mini. Need visuals or troubleshooting help? The full SP Flash Tool guide covers everything in detail.
-
Download and extract scatter package
-
Install MediaTek USB VCOM drivers
-
Launch SP Flash Tool v5.1628+ & load scatter file
-
Uncheck preloader partition
-
Click Download & connect powered-off phone
Firmware Package for MT6750
Official scatter firmware packages for the Gionee M6 Mini (GN5003) contain partition binaries (boot.img, system.img, recovery.img, lk.bin, logo.bin, and TrustZone images) structured through MT6750_Android_scatter.txt. When loaded in SmartPhone Flash Tool (SP Flash Tool), these images are flashed directly to the MediaTek MT6750 eMMC storage controller via Preloader USB VCOM.
MT6750_Android_scatter.txt
MediaTek scatter firmware packages organize raw system images alongside a linear partition map. The MT6750_Android_scatter.txt file instructs SP Flash Tool on exact sector boundaries for eMMC flashing.
The Gionee M6 Mini (GN5003) is powered by the MediaTek MT6750 octa-core processor across motherboard revision BBL7337A with 3GB of RAM, 32GB of eMMC storage, and a 4000 mAh battery.
Always confirm that your device model is "GN5003" before flashing. Never flash packages intended for the quad-core GN5001 (M5 Lite) or GN5002 (M5 Enjoy), as processor architecture, preloader binaries, and display drivers are fundamentally incompatible.
Gionee M6 Mini Firmware Versions
Official factory scatter firmware package for Gionee M6 Mini GN5003 (MT6750). Includes partition images and MT6750_Android_scatter.txt.
| Version | Region | Android Version | Size | MD5 | Download |
|---|---|---|---|---|---|
BBL7337A T0160 (2017.07.12) |
China / Global Stock | Android 6.0 (Amigo OS 3.5) | 2.22 GB | 7d92a10e4b85c219f8e473e1620a8c2f |
β¬οΈ Download |
Looking for earlier firmware builds or complete hardware taxonomy? Browse the full Gionee M6 Mini (GN5003) archive on AndroidFirmwareFile.com →
Gionee M6 Mini β Important Notes
Flashing official scatter firmware via SP Flash Tool repairs bootloop cycles, resolves software crashes, and unbricks dead devices.
If your device fails to connect, turn off the phone, remove and reinsert the battery (or hold Power for 10 seconds), open SP Flash Tool, click Download, hold Volume Down, and connect the microUSB cable to a rear USB 2.0 port.
Troubleshooting Gionee M6 Mini (GN5003) Flashing & MT6750 SP Flash Tool Issues
Handshake Timeout: BROM ERROR: S_BROM_DOWNLOAD_FAIL (2004) / USB 3.0 Drop
Observed when connecting the Gionee M6 Mini (GN5003) via USB 3.0 or USB 3.1 host ports on Windows 10/11. The MediaTek MT6750 BootROM handshake window lasts only 2 to 3 seconds before timing out. Community technicians recommend plugging into a native rear USB 2.0 port, ensuring signed MTK VCOM drivers are active, and holding Volume Down during connection.
DRAM Initialization: BROM ERROR: S_FT_ENABLE_DRAM_FAIL (4032)
Occurs when using older SP Flash Tool releases (such as v5.15) that fail to configure the MT6750 LPDDR3 memory controller on motherboard BBL7337A. Workshop technicians suggest utilizing SP Flash Tool v5.1628 or v5.1708 and ensuring the battery holds at least 40% charge during initialization.
Scatter Integrity: BROM ERROR: S_DA_UPDATE_BOOLOADER_EXIST_MAGIC_NOT_MATCHED (3144)
Reported when flashing with mismatched Download Agent (DA) files or corrupted scatter table definitions. Repair forum members recommend using the default MTK_AllInOne_DA.bin bundled with modern SP Flash Tool releases and re-extracting the firmware archive with 7-Zip.
Encountering handshake dropouts or scatter load errors on the Gionee M6 Mini (GN5003)? Review our workshop repair notes below. Troubleshooting & Known Quirks β
Frequently Asked Questions β Gionee M6 Mini
Turn off the phone completely. In SP Flash Tool, click "Download" first to prime the listening port, then insert the microUSB cable while holding the Volume Down button for 2 to 3 seconds. Once the red progress bar appears at the bottom of the tool, release Volume Down to allow the Preloader handshake and DRAM calibration to proceed.
Error 4032 indicates that the Download Agent (DA) could not initialize the device's LPDDR3 memory controller. This commonly occurs if using an outdated SP Flash Tool version (earlier than v5.1628) that lacks native MT6750 memory timings, or if attempting to flash scatter binaries across incompatible board revisions. Upgrading to SP Flash Tool v5.1628 or v5.1708 resolves this timing failure.
Selecting "Format All + Download" completely wipes all physical flash sectors, including the protected nvram, nvdata, and protect partitions where radio frequency calibration, MAC addresses, and unique IMEI serials reside. Formatting causes "Invalid IMEI" and complete baseband failure. Always use "Download Only" to preserve factory calibrations.
Disconnect the handset and hold the Power button for 12 seconds until the screen shuts off. Open SP Flash Tool v5.1628+, load MT6750_Android_scatter.txt from build T0160, ensure "Download Only" mode is active, uncheck the "preloader" partition to safeguard the bootloader block, click "Download", and attach the powered-off phone while holding Volume Down.
Ready to Flash?
Follow the full step-by-step SP Flash Tool guide with interactive progress tracking, prerequisite checklist, and complete troubleshooting.
