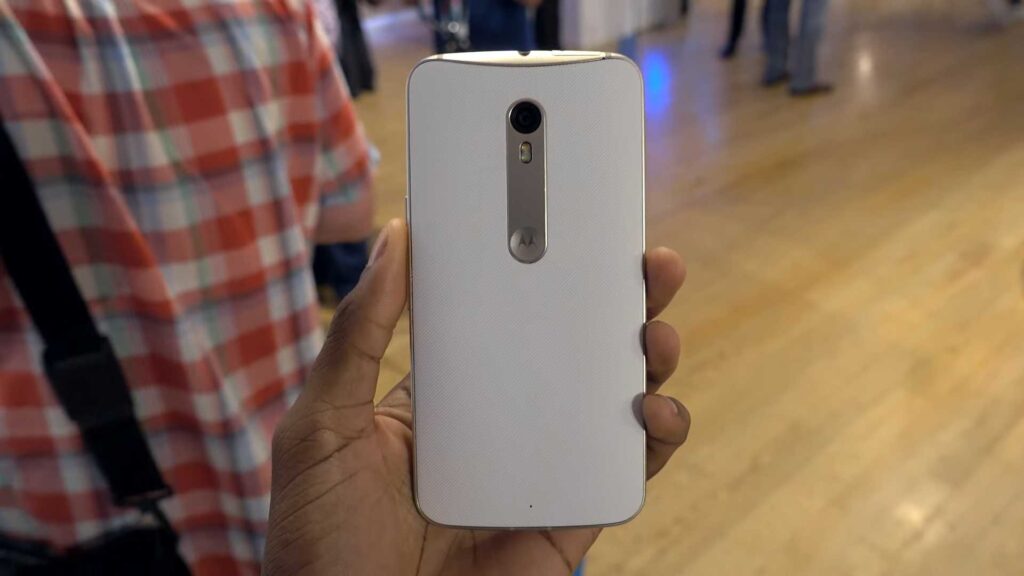

About the Motorola Moto X Style / Moto X Pure Edition
The Motorola Moto X Style / Moto X Pure Edition (filename codename tag: clark) is Motorola's 2015 flagship, released in July 2015 (announced; Moto X Pure Edition released in the US September 3, 2015), powered by the Qualcomm Snapdragon 808 (MSM8992) chipset. Motorola distributed it across three model numbers — XT1570 (China), XT1572 (Asia, Latin America, and Argentina), and XT1575 (Moto X Pure Edition, US) — each tied to a specific CID (Carrier/Channel ID) branch.
Every build in this archive is a CFC.xml service package flashed with Motorola's mfastboot binary — there is no EDL-mode package for this device in the source archive. The Prerequisites and Firmware Package sections below explain how to identify your exact variant before you begin.
Which Flash Mode Should You Use?
mfastboot (CFC.xml Package)
The standard method for every clark build in this archive. Runs the CFC.xml package's flash script with Motorola's mfastboot binary, writing system, boot, and radio images in sequence. Erases all user data.
Motorola Rescue and Smart Assistant
Motorola's official PC repair/reflash tool. Confirmed by Motorola's own support site as having a dedicated flow for the Moto X Pure Edition. A good first option if you'd rather not run mfastboot manually, or if your device needs a full repair rather than a specific branch's CFC.xml build.
Manual Fastboot (Partition-by-Partition)
An advanced alternate using the individual partition images (boot.img, system.img, and the radio/modem image) inside the same extracted CFC.xml package, flashed one at a time with standard fastboot. Useful if the mfastboot script itself won't run on your OS. Requires an unlocked bootloader and erases all user data.
EDL / QFIL (Not Applicable)
This device's Snapdragon 808 chipset is EDL-capable in principle, but no EDL-mode package exists in this archive — every known clark file is a CFC.xml mfastboot package. QFIL/EDL would only apply for recovering a hard-bricked unit with no fastboot access, which requires a Qualcomm EDL service package not currently listed here.
What You Need Before Flashing
Motorola's mfastboot binary and USB drivers are built for Windows; install the Motorola USB drivers before connecting the phone. Rescue and Smart Assistant also supports Mac.
Download the CFC.xml package that matches your exact model number, CID, and (for XT1572) DS tag. Confirm in Settings → About Phone → Model Number. A CID-mismatched package fails Motorola's mfastboot validation checks outright.
A data-capable USB cable is essential — charge-only cables will not be recognized by mfastboot. Use the original Motorola cable where possible, and connect directly to a USB 2.0 port rather than a hub.
The mfastboot script writes several partitions in sequence over a few minutes. This device has a non-removable battery, so a mid-flash power interruption carries more risk than on removable-battery hardware — charge to at least 30% first.
The mfastboot CFC.xml flow wipes user data. Back up photos to Google Photos, contacts to Google Contacts, and any local files to a PC before beginning.
How to Flash the Motorola Moto X Style / Moto X Pure Edition — Quick Overview
A quick 6-step overview built specifically for the Motorola Moto X Style / Moto X Pure Edition. The full Motorola flashfile.bat / CFC XML Script guide adds screenshots, progress tracking, and fixes for common errors.
-
Identify your exact model number, CID branch, and DS tag
-
Install the Motorola USB drivers and the mfastboot binary
-
Download the CFC.xml package matching your model + branch + CID
-
Boot to the bootloader and flash with mfastboot
-
Wait for the script to finish, then boot
-
Confirm IMEI/network on first boot
Finding the Firmware Package for
Every clark CFC.xml package extracts to a top-level CFC.xml file (some builds also ship the identical script as flashfile.xml) alongside a servicefile.xml and the individual partition images — boot.img, system.img, the radio/modem image, and so on — that mfastboot flashes in sequence. There is no scatter file here; that format is MediaTek-specific and does not apply to this Qualcomm Snapdragon 808 device. Fully extract the archive to its own folder on your PC before running anything — mfastboot needs to read the CFC.xml script and the partition images directly from disk, not from inside a compressed archive.
Motorola Moto X Style / Moto X Pure Edition Firmware Versions
A representative build for each confirmed model number of the Motorola Moto X Style / Moto X Pure Edition. Always verify the CID and branch match your device before flashing.
| Version | Region | Android Version | Size | MD5 | Download |
|---|---|---|---|---|---|
LPH23.145-7 |
XT1570 — RETCN (China retail, CID11, DS) | Android 5.1.1 | 773 MB | — | ⬇️ Download |
NPH25.200-15 |
XT1572 — RETLA (Latin America retail, CID12, no DS tag) | Android 7.0 | 1.44 GB | — | ⬇️ Download |
NPH25.200-22 |
XT1575 — RETUS (US retail, CID9, no DS tag) | Android 7.0 | 1.40 GB | — | ⬇️ Download |
This device has 11 known files across three confirmed model numbers. See the complete archive on AndroidFirmwareFile.com →
Common Errors on the Motorola Moto X Style / Moto X Pure Edition
mfastboot: "FAILED (remote: unknown command)" or the script exits immediately
Confirm you're running Motorola's mfastboot binary from the same folder the CFC.xml package extracted into, not a stock Android SDK platform-tools fastboot.exe. Standard fastboot does not recognize several of the OEM commands Motorola's CFC.xml scripts issue.
Device not detected / mfastboot devices returns nothing
Power the phone off completely, then hold Volume Down + Power to boot straight to the bootloader/fastboot screen before connecting USB. Confirm the Motorola USB driver is installed and the phone shows up in Device Manager. Use a data-capable USB cable and a USB 2.0 port directly on the motherboard rather than a hub.
FAILED (remote: "Device is not unlocked, cannot flash or erase") on a manual fastboot partition write
This applies to the manual, partition-by-partition fastboot method only — not the standard mfastboot CFC.xml script, which flashes signed stock images without needing an unlock. If you specifically need manual per-partition fastboot, request an unlock code at motorola.com/unlock-bootloader with your IMEI and Android ID first.
Script completes but device won't boot past the Motorola logo
An interrupted or CID/branch-mismatched flash can leave a partition inconsistent. Re-run the full CFC.xml script from scratch with the exact package matching your model, CID, and branch tag — don't assume a partial re-flash of just one partition will fix it.
No signal / wrong IMEI after flashing
Usually caused by flashing a CID- or branch-mismatched CFC.xml package — each branch carries its own radio provisioning. Re-flash using the exact package matching your model, CID, and branch tag from the firmware table below.
For the full mfastboot error database: mfastboot / CFC.xml Error Directory →
Frequently Asked Questions — Motorola Moto X Style / Moto X Pure Edition
Not necessarily. A stall or mid-script error usually means a driver or cable issue, not a bricked device — as long as the phone still shows the bootloader/fastboot screen when powered on, it can be re-flashed. Reconnect, confirm mfastboot devices lists the phone, and re-run the same CFC.xml script from the start rather than trying to resume partway through.
This device's firmware is locked per-CID (CID11 China, CID7 Asia, CID12 Latin America/Argentina, CID9 US). A CID/signature mismatch during the mfastboot script means the package's embedded CID doesn't match the one already programmed on your device — re-check the CID and branch tag on the fastboot screen against the filename before retrying, rather than assuming any CFC.xml package for the same model number will work.
No — reflashing the stock CFC.xml package over mfastboot does not itself require an unlocked bootloader, since it writes the same signed images Motorola ships. An unlock is only needed if you're installing a custom recovery or ROM afterward, which is outside the scope of this stock-firmware guide.
Yes for this device — Motorola's own support site lists a dedicated Rescue and Smart Assistant flow for the Moto X Pure Edition, and mfastboot is the manual alternative if RSA doesn't detect your unit or you need a specific CFC.xml build RSA doesn't offer. See the Rescue and Smart Assistant card below.
Ready to Flash?
Follow the full step-by-step Motorola flashfile.bat / CFC XML Script guide with interactive progress tracking, prerequisite checklist, and complete troubleshooting.
